NW Conversions

Wheel Well Water Tank (25 Gallon) for Transit Vans - Center

$299.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Shipping & Returns

Order Changes

Once an order is placed, we ask that all changes (concerning appliances, width, add-ons, material) be made in the following 7 DAYS. Any changes made after this time will be charged a 30% restocking fee. This policy has been implemented to further guarantee the quality of your order and reduce any inconsistencies.

Order Refunds

We strongly advise all customers to read over our refund policy. This is located here. Custom orders CANNOT be refunded once in production. The Serg Supply team will notify you when your product is going into production. Refunds cannot be issued after this point in the process. More details can be found on our Refund Policy Page.

Order Damages

If damage occurs to your order through shipping transit, please notate on your delivery documents. This will be visible by the pallet and/or the shrink wrap being damaged. After delivery, please email office@sergsupply.com for follow up. More details can be found on our Shipping Policy Page. This is located here.

Shipping

Parcel

Orders with smaller items weighing less than 100lbs ship via UPS, FEDEX, or USPS.

Pallet

Any orders with items weighing over 100lbs or larger than 72" in any direction must be shipped on a pallet. Update: Shipping is free for select SergSupply manufactured products!

Each pallet is insured with liftgate service + residential charge applied. If you have a commercial address with a forklift, please state it in order notes for quicker delivery.

You can see our complete shipping policy here.

Local Pickup

Want to save time on shipping? Select the local pickup option at checkout and we will notify you when your order goes into production to set a pickup date.

Product Warranty

All products are covered under a 90-day manufacturer warranty to guarantee the quality of your product and quality of construction. If you should have any quality issues with your product, contact us at office@sergsupply.com.
Installation Services

Serg Supply now offers installation services!

For details on what products we service, prices, and Terms & Conditions, please review this page:

Installation Services Details

To schedule an installation, please email us at office@sergsupply.com or you can schedule an appointment on our website under the "Installation" top tab. Please state which product you wish to install, vehicle type, and if there are already products installed into your vehicle.
Description

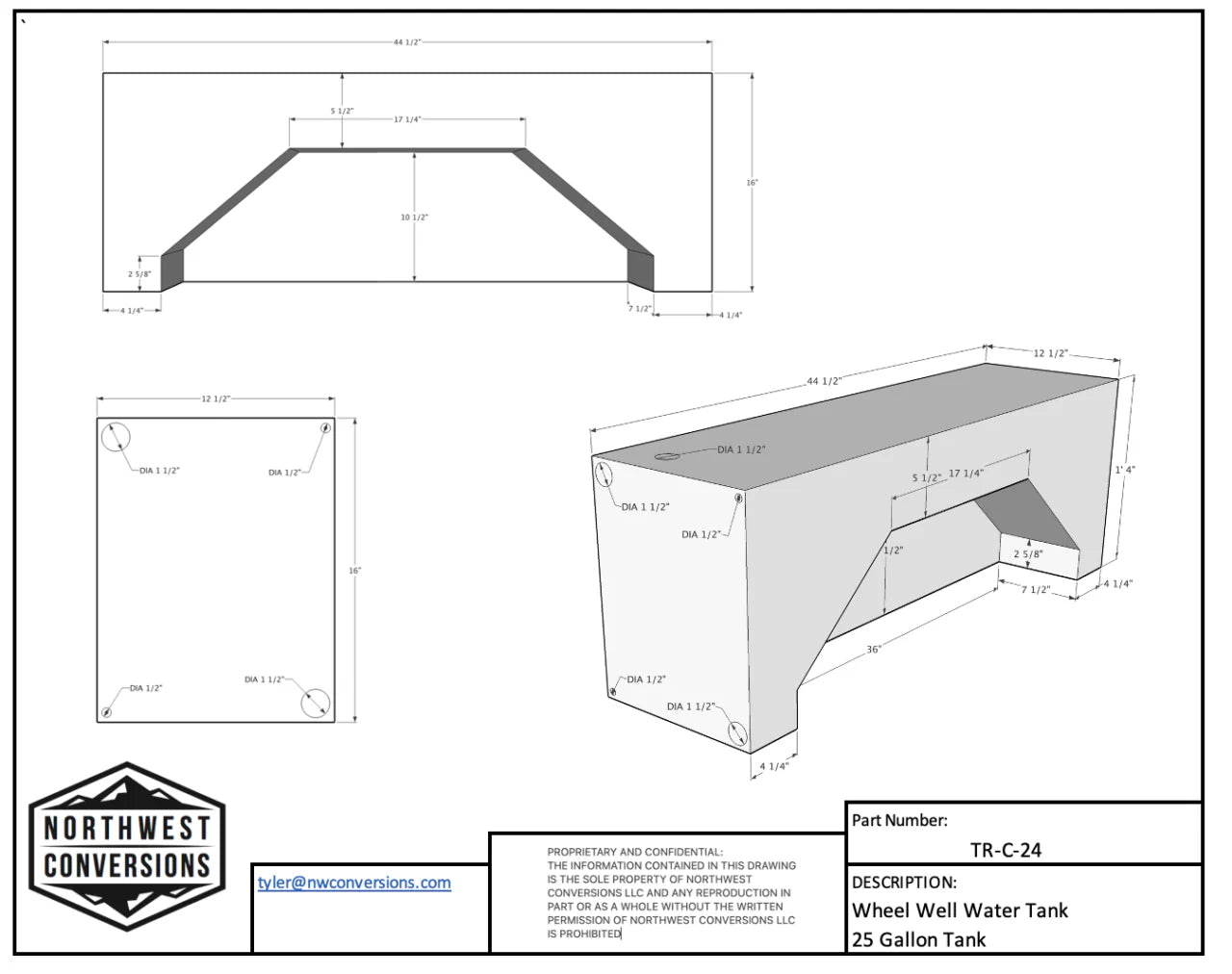

The 25 Gallon Transit Wheel Well Water Tank (TR-C-24) is a premium, space-efficient freshwater storage solution designed specifically for Ford Transit vans. Centered over the wheel well, this tank preserves interior space while keeping water weight low and balanced, ensuring smooth vehicle handling on the road. Constructed from BPA-free, food-grade polyethylene, it is engineered for vented, non-pressurized systems, providing reliable, long-lasting performance for off-grid adventures and custom van builds. Multiple 1.5-inch and 1/2-inch NPT ports offer flexible connection options for pumps, sensors, or vents.

This tank can be installed on either the driver or passenger side of the vehicle, allowing for optimal placement in any van layout. Its compact, yet generous 25-gallon capacity maximizes water storage without compromising available space around the wheel well. The top port is ideal for filling or installing a level sensor, while end ports provide versatile integration into your van’s water system.

Measuring 48 inches long, 13 inches wide, and 16 inches tall, and weighing 28 pounds, the TR-C-24 offers an elegant balance of size, capacity, and functionality. Made in the USA, it combines thoughtful engineering, durable materials, and refined design, making it a reliable choice for discerning van owners who value efficiency, quality, and practicality.

Key Features

  • Designed specifically for Ford Transit vans

  • Can be installed on driver or passenger side

  • BPA-free, food-grade polyethylene construction

  • Vented, non-pressurized design

  • Multiple 1.5” and 1/2” NPT ports for versatile water system connections

  • Centered over wheel well for optimal space utilization

  • Made in the USA

Specs

  • Capacity: 25 gallons

  • Weight: 28 lbs

  • Dimensions: 48 × 16 × 13 in

Policies, Shipping, Warranty

Order Changes

Once an order is placed, we ask that all changes (concerning appliances, width, add-ons, material) be made in the following 7 DAYS. Any changes made after this time will be charged a 30% restocking fee. This policy has been implemented to further guarantee the quality of your order and reduce any inconsistencies.

Order Refunds

We strongly advise all customers to read over our refund policy. This is located here. Custom orders CANNOT be refunded once in production. The Serg Supply team will notify you when your product is going into production. Refunds cannot be issued after this point in the process. More details can be found on our Refund Policy Page.

Order Damages

If damage occurs to your order through shipping transit, please notate on your delivery documents. This will be visible by the pallet and/or the shrink wrap being damaged. After delivery, please email office@sergsupply.com for follow up. More details can be found on our Shipping Policy Page. This is located here.

Shipping

Parcel

Orders with smaller items weighing less than 100lbs ship via UPS, FEDEX, or USPS.

Pallet

Any orders with items weighing over 100lbs or larger than 72" in any direction must be shipped on a pallet. Update: Shipping is free for select SergSupply Manufactured items!

Each pallet is insured with liftgate service + residential charge applied. If you have a commercial address with a forklift, please state it in order notes for quicker delivery.

You can see our complete shipping policy here.

Local Pickup

Want to save time on shipping? Select the local pickup option at checkout and we will notify you when your order goes into production to set a pickup date.

Product Warranty

All products are covered under a 90-day manufacturer warranty to guarantee the quality of your product and quality of construction. If you should have any quality issues with your product, contact us at office@sergsupply.com.

Installation Services

Serg Supply now offers installation services in Auburn, California!

We are excited to announce that Serg Supply is now accepting installation services at our Auburn, California shop! Enjoy the convenience of same-day installations on select products, ensuring you can get back on the road quickly and efficiently. For full conversions please allow 2-3 weeks for installation.

Please note that the pricing for the products does not include installation costs. For details on what products we service, prices, and Terms & Conditions, please review this page:

Installation Services Details

To schedule an installation, you can either email us at installs@sergsupply.com or call us directly at (941) 876-5000. For additional information please see our "Schedule an Installation" page. Please state which product you wish to install, vehicle type, and if there are already products installed into your vehicle. We look forward to helping you build out your van!

Stirring The Pot

ONLY THE BEST Materials

BPA FREE - FOOD GRADE POLYETHYLENE PLASTIC

Unlike traditional plastics, BPA-free materials do not leach harmful chemicals into the water, protecting your health and well-being.

READ MORE
VIEW ALL
Installed wheel well boxes for van conversion
Installed rear view 28 GALLON SPARE TIRE WATER TANK
Installed 20 GALLON TRANSIT VAN UNDERCARRIAGE WATER TANK

HOW DO I PICK THE RIGHT TYPE OF WATER TANK?

Selecting the right water tank is crucial for ensuring you have a reliable water supply. Water tanks come in various types, each with its own set of advantages and disadvantages. Understanding these options will help you make an informed decision based on your travel habits, space constraints, and climate considerations.

These tanks are the most popular choice among van owners, as they are installed inside the van, significantly reducing the risk of freezing and making them ideal for colder climates. They fit seamlessly into SergSupply Wheel Well Boxes and SergSupply Universal Wheel Well Box Bed Systems, maximizing space utilization and providing easy access.
This tank saves interior space and remains out of sight, contributing to a clean aesthetic in your van. However, it risks freezing in colder climates, which can limit its usability, and its capacity may be restricted based on the size of the spare wheel compartment, requiring more frequent refills during longer trips.
Pros include space efficiency and a concealed installation that keeps the interior tidy, allowing for a more spacious living area. However, it is prone to freezing in cold weather, which can lead to potential damage and inconvenience, and accessing it for maintenance can be more challenging due to its location.
