Ceiling Kit - Sprinter

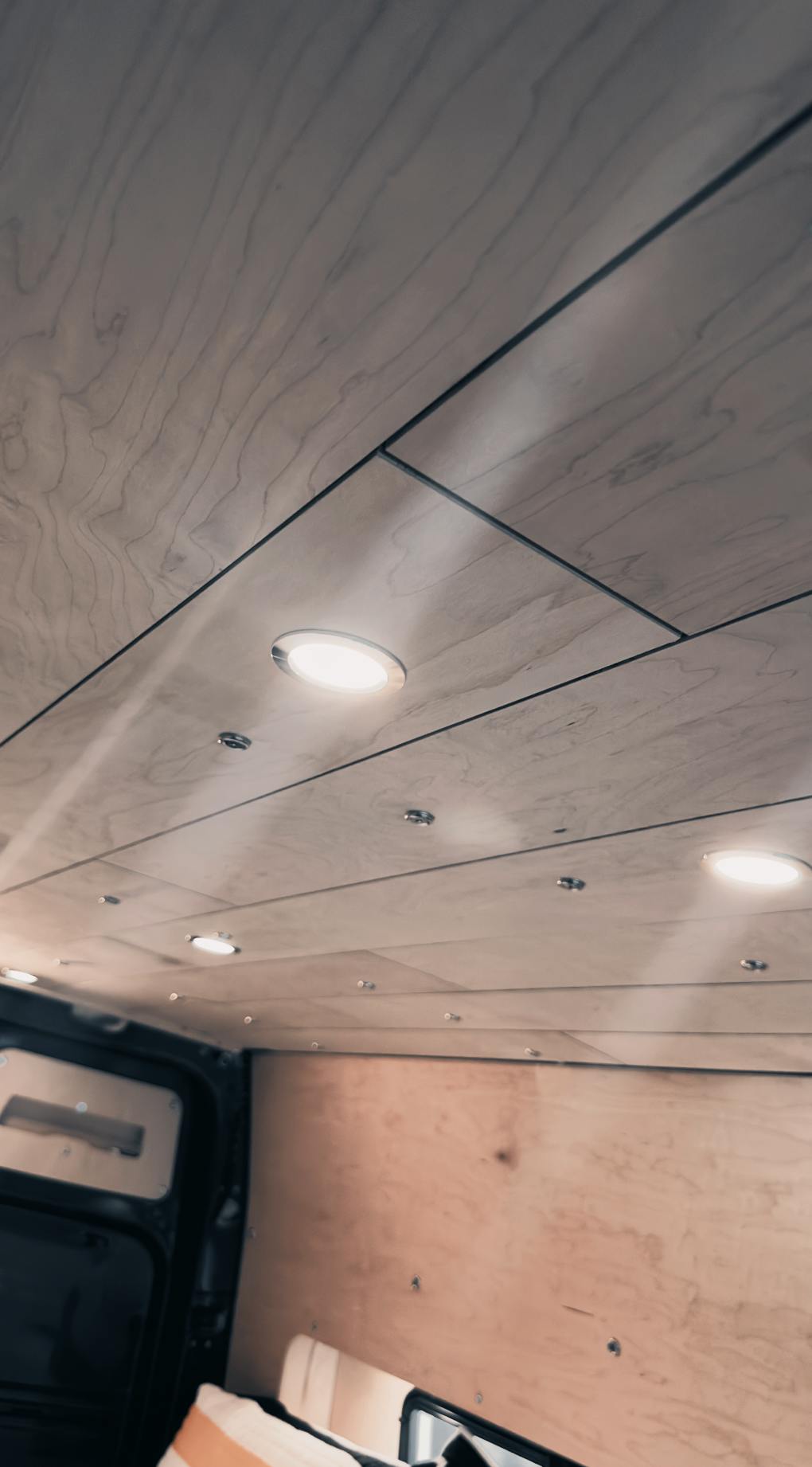

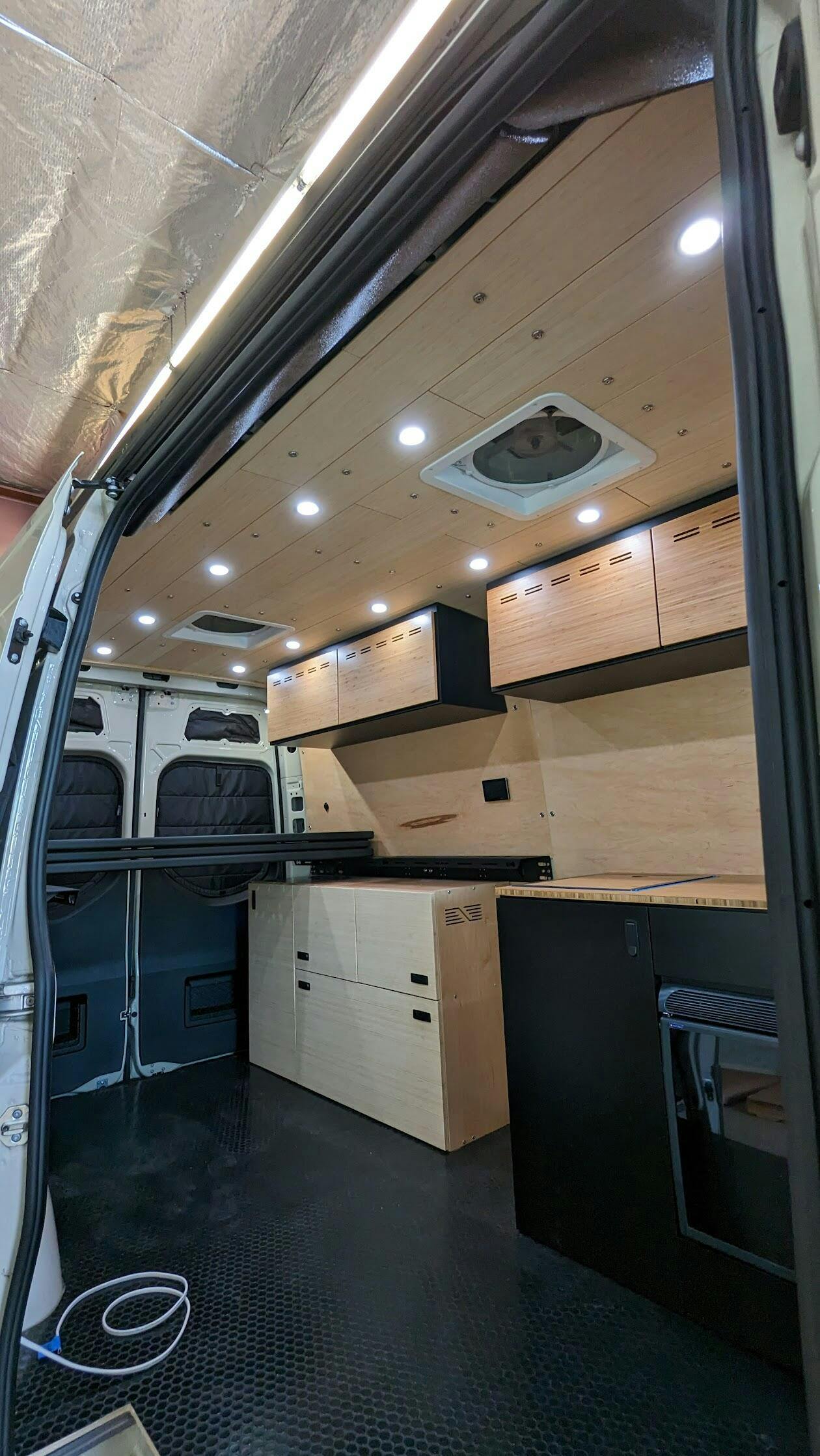

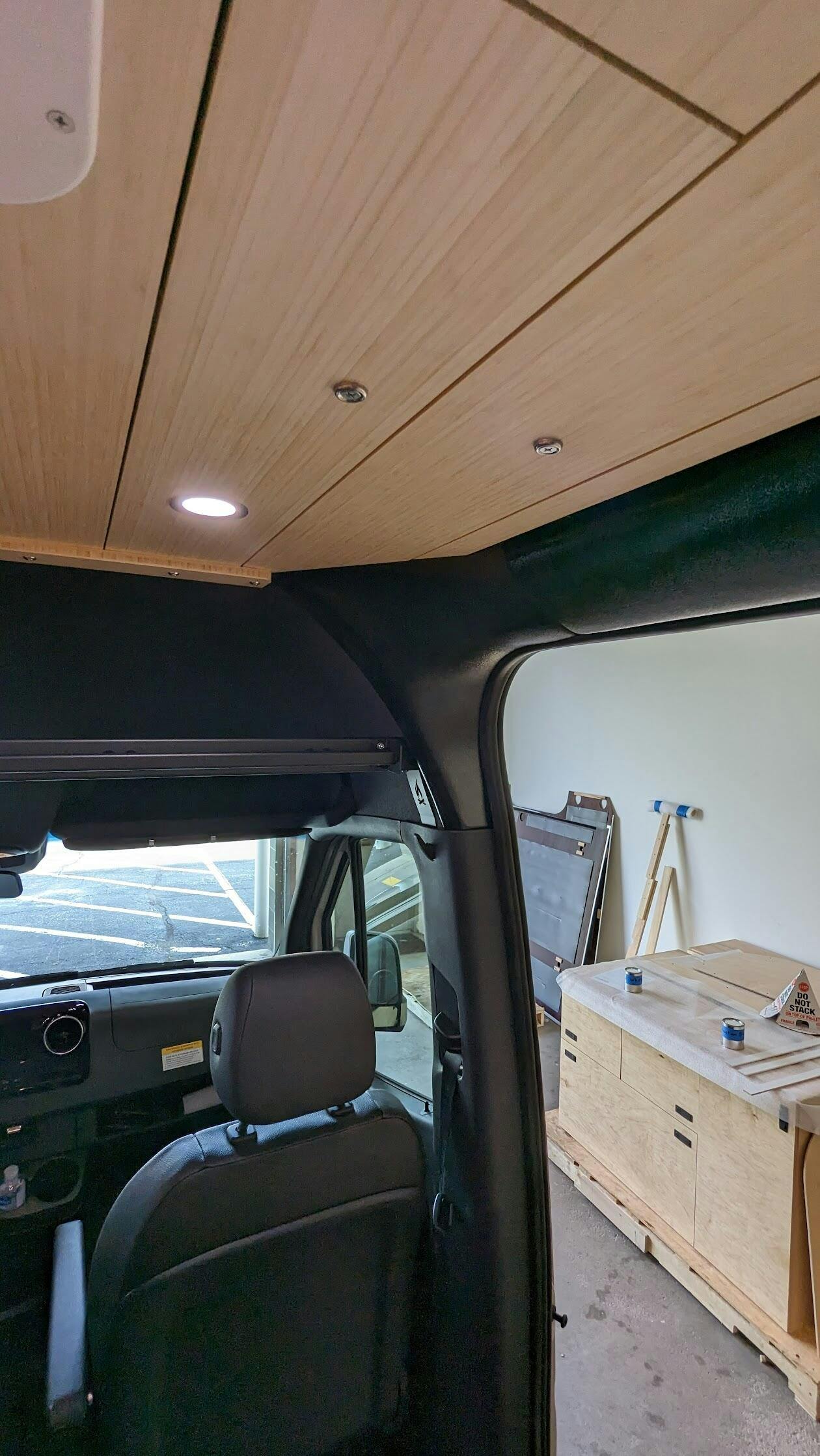

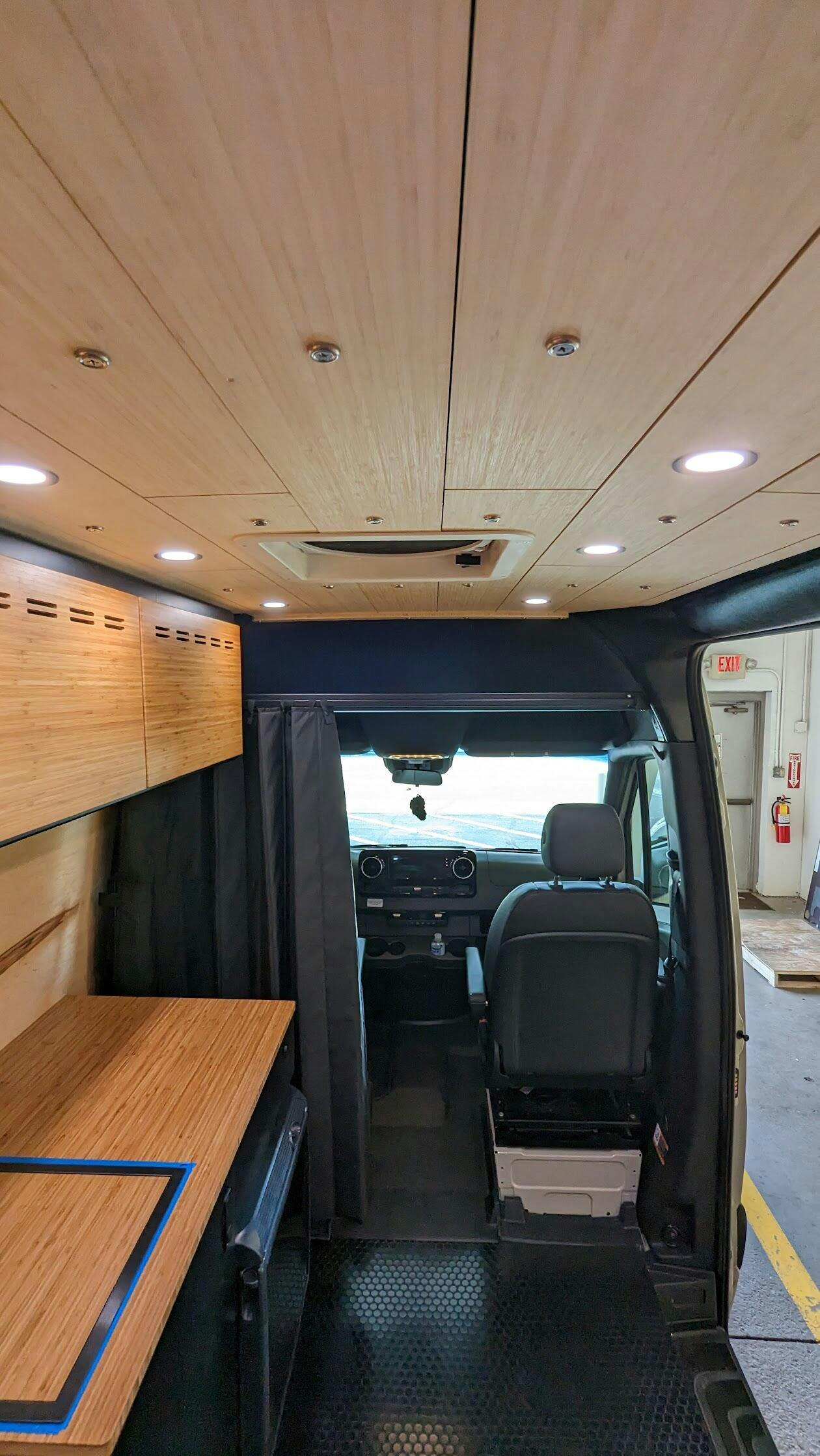

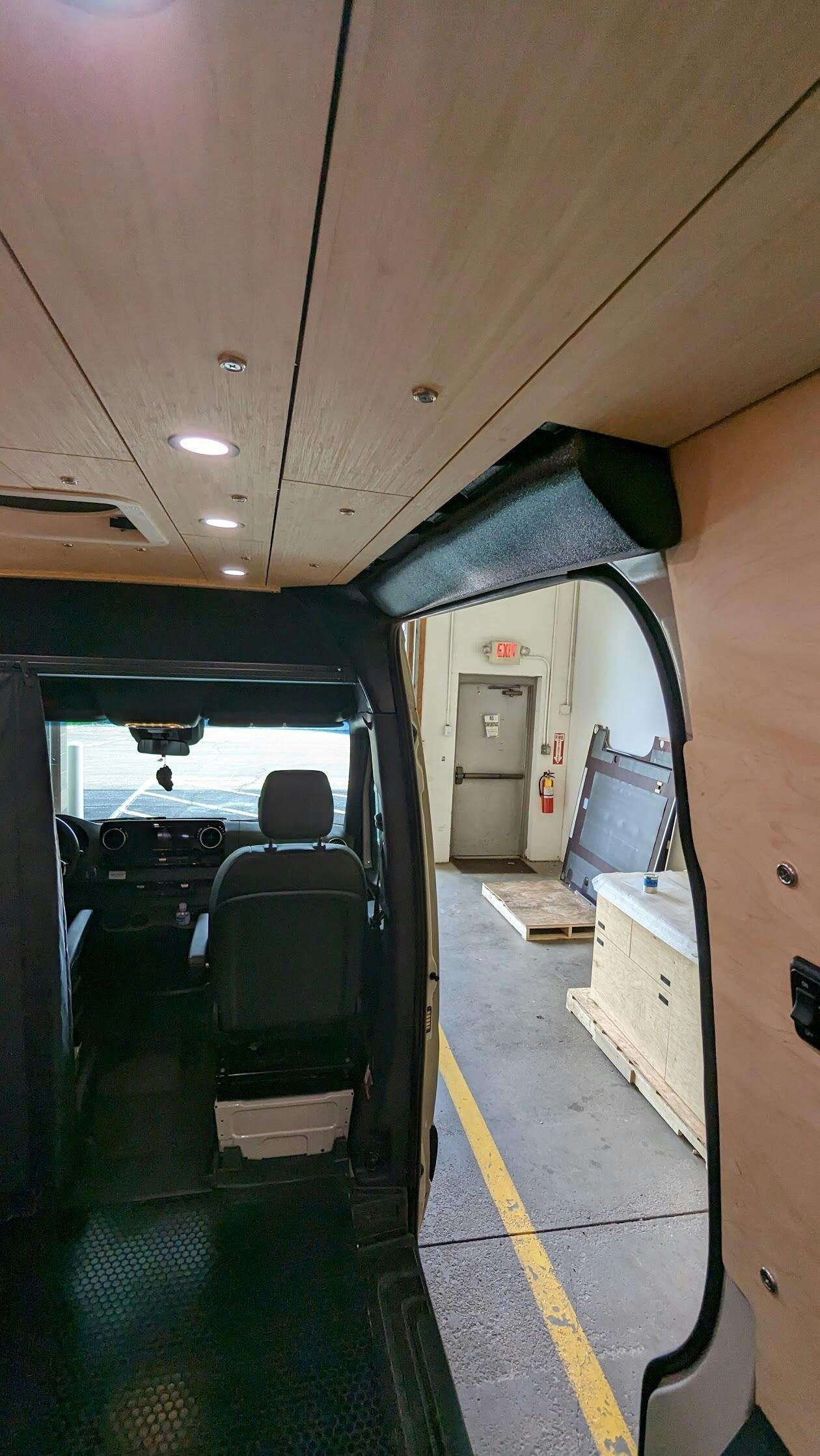

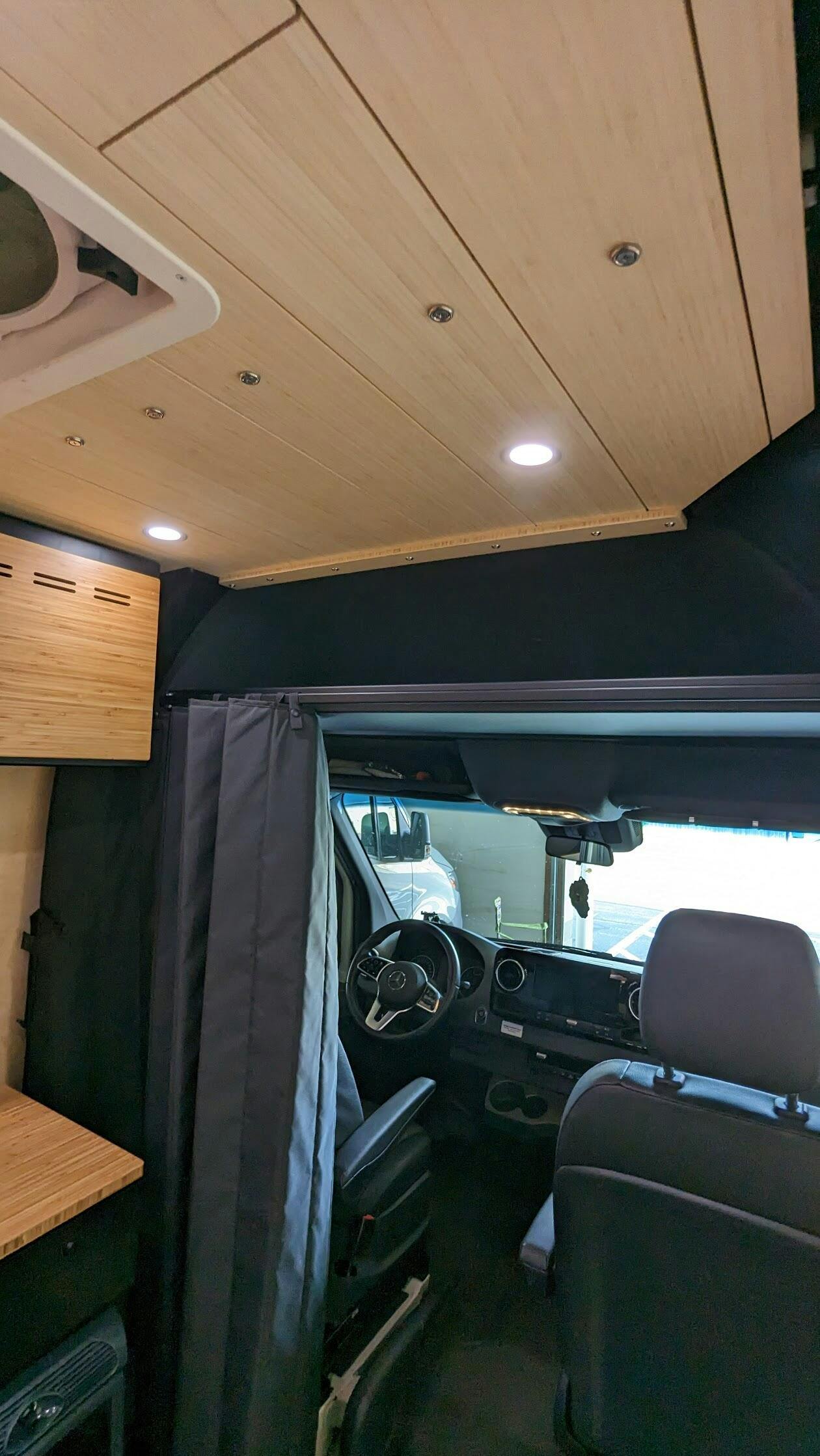

This is a specialized kit made to fit your 2006 to 2022 MB Sprinter 144 high Roof, 170 Extended High Roof, or 170 High Roof. Our Sprinter ceiling kit is the easiest ceiling kit on the DIY market to install. Every panel is CNC cut for the best possible fit in your Sprinter conversion. This product is compatible with the NCV3 and VS30 models.

• Ceiling Panels
• Rivet Nuts
• Threaded Screws and Washers
• Proper Drill Bit
• Instructions
• Light Pucks (12VLED)

- Natural Maple (lighter Material Excellent for lighter stains)
- Prefinished Maple (Already finished for you, no need to stain)
- Carbonized Bamboo (Unfinished, but we can apply finishing oil for you)

Weight: 50-90lbs

Application: Rivet Nut directly to factory holes or into furring strips

Hardware: All stainless steel machine screws + washers with zinc-coated steel rivet nuts

• Factory foam block cutout option allows the ceiling panels to wrap around your factory foam blocks with no modification needed. Please note: This will change the appearance of the front cover panel to ensure proper fitment.
• Outer driver-side row features a hidden notch to tuck away factory wiring harness
• This ceiling kit extends to within 1/2" (12mm) of your factory wall edge
• Union panels hold rows together from the backside to hold a consistent 1/8" gap between panels
• Single row lighting contains 6 lights, dual row contains 12. Fan cutouts may affect the position and quantity of your lights
• 170 & 170 Extended feature an additional support panel that will need to mount to your rear cargo overhead beam

Each kit comes with detailed directions on how to install your own ceiling kit. These kits are designed to fit already existing factory holes in the sprinter 144/170.

Installation Difficulty: Medium | 2 people
Installation Time: 4-6 Hours
Tools Needed: Power Drill, Rivet Nut Tool

How can I order a material that isn't listed?

• Send an email to info@sergsupply.com with your request as we can offer this kit in:


  • Birch
  • Oak
  • Walnut
  • Bamboo (Natural and Carbonized)
  • Upholstery-ready material
  • Preupholstered Marathon tweed
  • Variety of laminate solid colors

  How does the ceiling kit mount?

Sprinter Models:

All Mercedes Benz sprinter kits are designed to fit directly to the factory holes in your ceiling. The factory holes will need to be bored out to 3/8" for rivet nut inserts prior to installation. All panels are mounted 0.25" apart and cover the entirety of the ceiling between walls.

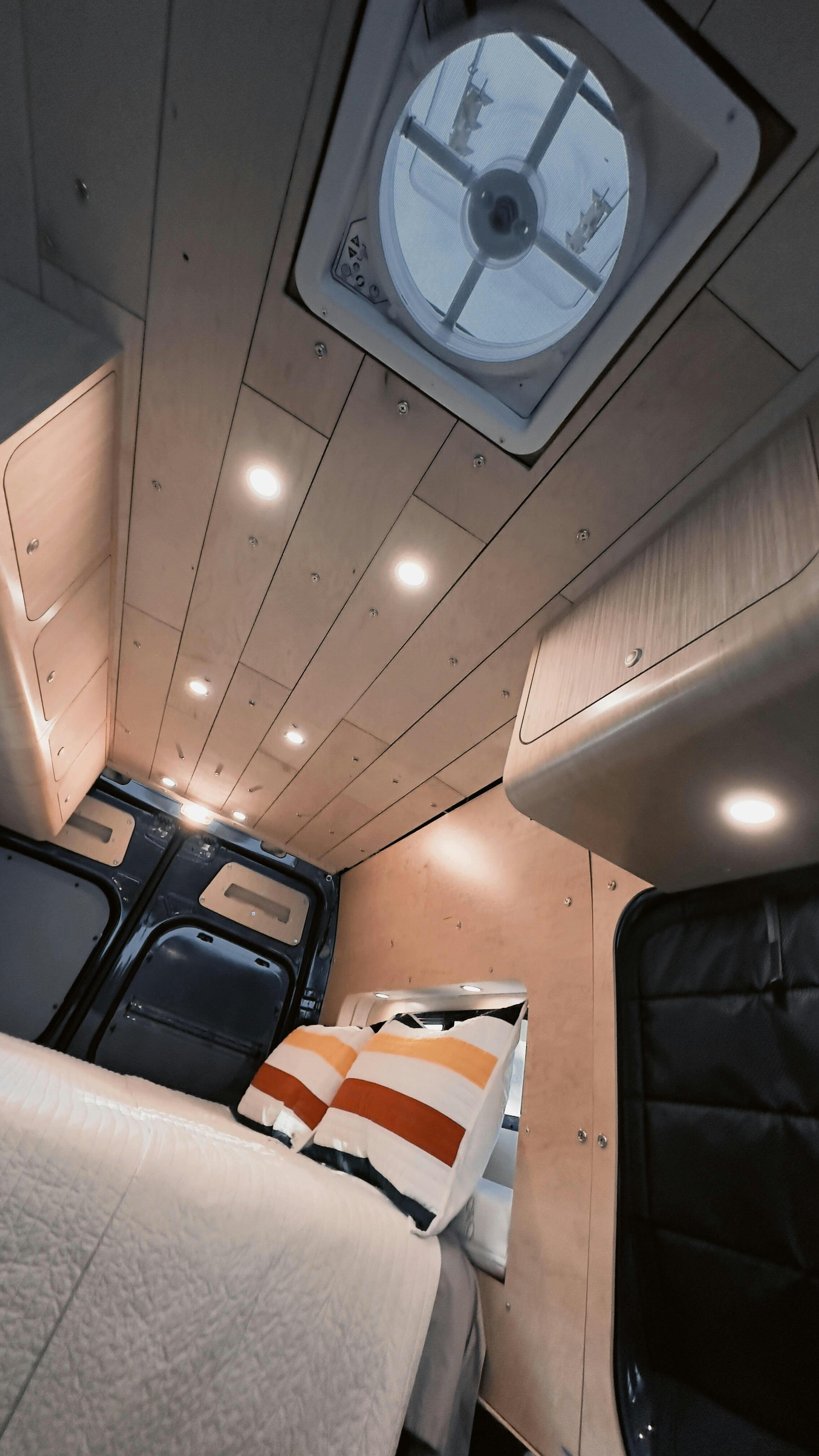

• Will the ceiling kits work with ceiling fan cutouts?

Yes, our team will pre-cut for a fan for you if needed. We will reach out to you once your order has been placed and we will walk you through the process of measuring for your fan cutout.

• What if I want only one row of puck lights?

We can do a singular row of puck lights for the ceiling kits! However, we do price these the same as the dual row option.

• How do I apply stain, finish, or sealer?

If you plan on painting:

• lightly scuff the entire surface of the product that you plan on coating with 120-180 grit sandpaper.
• Apply 2-3 coats of primer prior to applying your main coat.
• Always apply a finish when you're happy with the paint to get a long lasting appearance.

If you plan on staining:

• Sand the surface on all faces with sandpaper traveling with the grain of the wood.
• Apply stain very cautiously to a section of the product that will not be visible to gage the volume and pressure you need to achieve the look you want.
• Apply stain evenly with a rag, sponge, or spray gun until all surfaces are coated.
• Please note that overlapping surfaces may make the stain darker on the overlapped areas.
• Always apply a finish when you're happy with the stain to get a long lasting appearance.

We can offer the following customizations to your ceiling panel kit at an additional charge:

• Cutouts for factory foam blocks
• Cutouts for factory LED dome lights
• Unusual Light placement
• LED Strip placement
• Hatch, A/C, and other non-standard fan cutouts

- We can not guarantee consistency in grain or pattern in natural wood colors as they are made from real wood veneer and sometimes nature is inconsistent.
- 3/4" Plywood panels are plywood with veneer laminate and because of this, grain will be visible on sides between the 1/8" gaps.
- Panels are not edge banded as more temperate climates may cause adhesive to melt and banding to peel. For this reason, raw wood is visible on sides of panels.
- Lights are included.
- If a panel is damaged, we won't make you purchase a new kit. Simply let us know which panel and we can ship a replacement!
- Not all vans come off the factory line identical. Expect a handful of rivet nuts to be a few millimeters off-course. These need to be widened out with the drill bit or burring bit for the screws to align properly.
