Promaster Van Flooring Kit

Promaster Subfloor Connections

Grey Lonridge Lonseal Flooring

Serg Supply

Promaster Van Flooring Kit

$2,771.34 USD

Shipping calculated at checkout.

Product variants

Quantity

Pickup available at 4416 Yankee Hill Road

Usually ready in 5+ days

Shipping & Returns

Order Changes

Once an order is placed, we ask that all changes (concerning appliances, width, add-ons, material) be made in the following 7 DAYS. Any changes made after this time will be charged a 30% restocking fee. This policy has been implemented to further guarantee the quality of your order and reduce any inconsistencies.

Order Refunds

We strongly advise all customers to read over our refund policy. This is located at the top of the website home page under the "About" tab. Custom orders CANNOT be refunded once in production. The Serg Supply team will notify you when your product is going into production. Refunds cannot be issued after this point in the process. More details can be found on our Refund Policy Page.

Order Damages

If damage occurs to your order through shipping transit, please notate on your delivery documents. This will be visible by the pallet and/or the shrink wrap being damaged. After delivery, please email office@sergsupply.com for follow up. More details can be found on our Shipping Policy Page. This is located at the top of the home page under the "About" tab.

Shipping

Parcel

Orders with smaller items weighing less than 100lbs ship via UPS, FEDEX, or USPS.

Pallet

Any orders with items weighing over 100lbs or larger than 72" in any direction must be shipped on a pallet. Update: Shipping is free!

Each pallet is insured with liftgate service + residential charge applied. If you have a commercial address with a forklift, please state it in order notes for quicker delivery.

You can see our complete shipping policy here.

Local Pickup

Want to save time on shipping? Select the local pickup option at checkout and we will notify you when your order goes into production to set a pickup date.

Product Warranty

All products are covered under a 90-day manufacturer warranty to guarantee the quality of your product and quality of construction. If you should have any quality issues with your product, contact us at office@sergsupply.com.

Installation Services

Serg Supply now offers installation services!

For details on what products we service, prices, and Terms & Conditions, please review this document:

Installation Services Details

To schedule an installation, please email us at office@sergsupply.com or you can schedule an appointment on our website under the "Installation" top tab. Please state which product you wish to install, vehicle type, and if there are already products installed into your vehicle.

Description

Embark on your van conversion journey with the Promaster Van Flooring Kit, a pivotal element in crafting the perfect home on wheels. As the foundational layer of your project, this kit serves as more than just a floor—it's your shield against road noise, a pillar of rigidity for your entire build, and a reliable insulator ensuring a cozy and quiet haven inside your van.

Transforming your van into a home on wheels demands quality, and the Promaster Van Flooring Kit stands out as the premier choice for discerning van life enthusiasts. Our kit is more than just a floor—it's a carefully engineered solution designed to elevate your van conversion experience. With a load-bearing birch subfloor our flooring kit provides unparalleled durability, ensuring it can withstand the rigors of life on the road. The panels, cut-to-fit for your specific model, offer seamless integration and lock together effortlessly, saving you time and effort during installation. Whether you prefer an adhered or screwed application, our kit allows you to customize your build. The CNC precision-cut floor not only adds a touch of sophistication but also contributes to the overall structural integrity of your mobile haven.

With a commitment to quality and innovation, the Promaster Van Flooring Kit is your trusted companion in crafting a van conversion that combines comfort, durability, and style. Choose excellence—choose the Promaster Van Flooring Kit for a van life adventure.

Now that you have found the perfect base for your van conversion check out our Promaster Wall Panel Kits and Ceiling Kit for the complete look!

Note: Top layer of laminate, lonseal, or Tec2 is Not Included.

Features

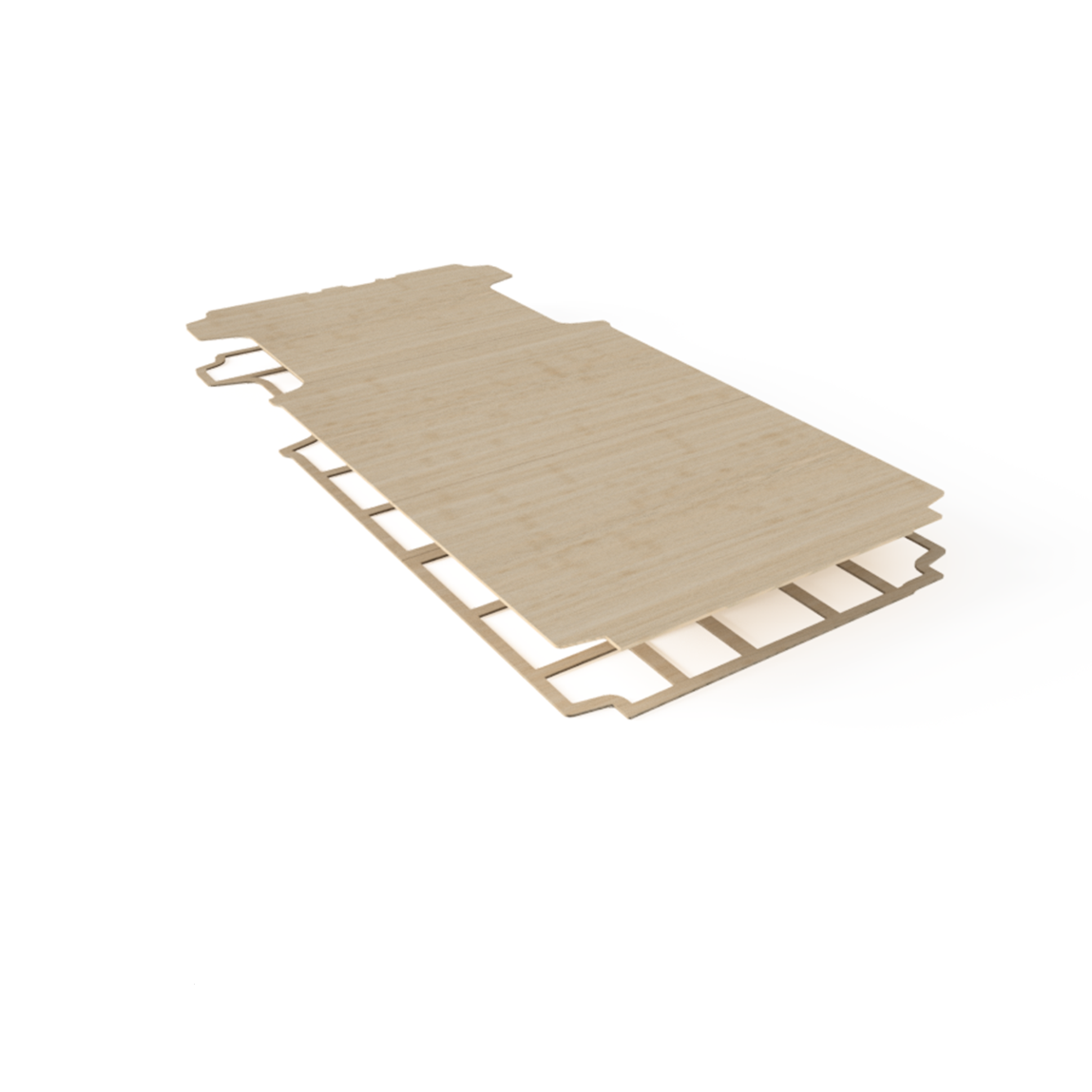

Robust Construction: Our kit includes a 3/4" load-bearing birch insulation frame and a 1/2" Led-bearing birch subfloor for durability and resilience on every road you travel.
Load-Bearing Birch Insulation Frame: A pocketed subfloor base with openings for insulation to be stuffed into. This is also an alternating dovetail assembly with beams coinciding with the ribs on the factory floor of the vehicle.
Customizable Panels: The subfloor comes in 3 or 4 (model-dependent) easy-to-handle 48" x 76" panels, cut-to-fit for seamless integration into your van space.
Effortless Assembly: The floor panels ingeniously lock together in a dovetail pattern, facilitating a hassle-free installation process. No need for complicated modifications—these panels are designed to be drop-in ready.
Versatile Installation: Choose between adhering or screwing the panels directly into your van's floor, providing flexibility based on your preferences and needs.
Wheel Well Compatibility: The subfloor features CNC relief cuts on the underside, ensuring a perfect fit around higher elevation wheel wells and optimizing space without compromising quality.

Materials

Subfloor: Birch Plywood
Insulation Frame: Birch Plywood

What's Included

- Insulation Frame (3/4" Load-Bearing Birch)
- Subfloor (1/2" Load-Bearing Birch)
- L-Track + Fasteners (Adventure Floor)

Flooring Types

Standard Floor: 3/4" Insulation Frame + 1/2" Subfloor + Installation Hardware. Lonseal/2Tec2 is not included.

Adventure Floor: 3/4" Insulation Frame + 1/2" Subfloor + (2) rows integrated L-Track + Installation Hardware. L-Track is always 48" long in the garage area of the build. The L-Tracks are anchored in place with threaded inserts on the underside of the insulation frame and spaced 6.5" apart from center to center. L-Track placement and/or quantity can be modified per customer request. This L-Track is for gear only, not for seats.

Specs

Size: 1"H x 70"W x 80"-150"L
Weight: 120-250lbs

Compatibility

Compatible with Promaster 159"

DIY Installation

Installation Difficulty: Medium | 2 people
Installation Time: 2-3 Hours | 3 days curing time
Tools Needed: Power Drill

FAQs

How does the subfloor get installed?

While the included fasteners are sufficient, the addition of contact cement is recommended. We use SikaFlex 221 to install our flooring kits without fasteners.

If using epoxy- how much do I need?

We've seen a gallon as more than plenty for the Promaster 159
